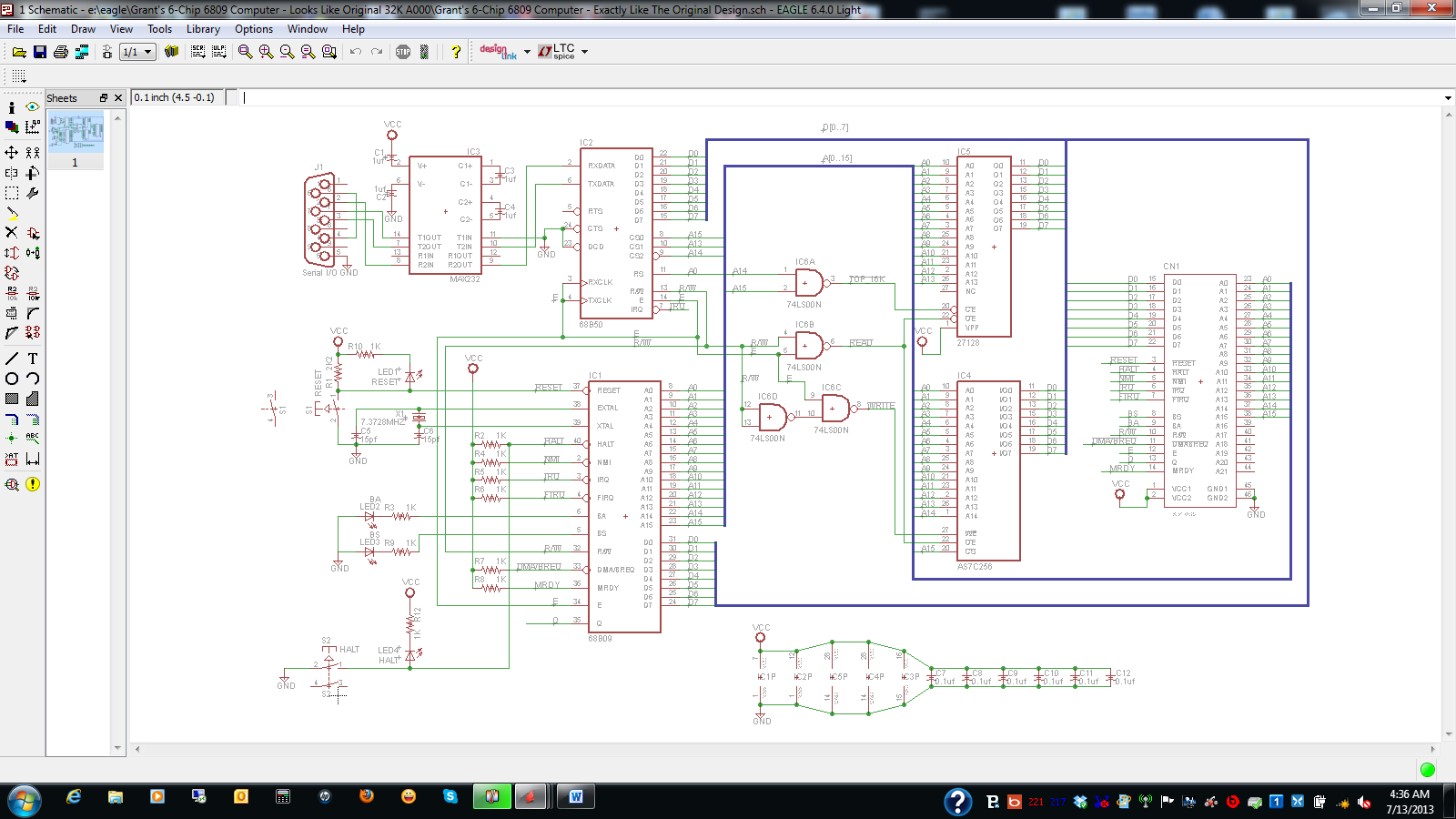

File:Grant's 6-Chip 6809 Single Board Computer with Modifications.png
As you can see I have added a few minor modifications to Grant's original design. There are status LEDs for RESET, and HALT. I've also added LEDs to BA and BS to show the status of the microprocessor itself. I've also added push buttons for RESET and HALT. For future expansion, I've created the KIPPER BUS and added a 46 pin header to the schematic.
File history
Click on a date/time to view the file as it appeared at that time.
| Date/Time | Thumbnail | Dimensions | User | Comment | |
|---|---|---|---|---|---|
| current | 05:01, 13 July 2013 | | 1,600 × 900 (161 KB) | Computerdoc (talk | contribs) | As you can see I have added a few minor modifications to Grant's original design. There are status LEDs for RESET, and HALT. I've also added LEDs to BA and BS to show the status of the microprocessor itself. I've also added push buttons for RESET ... |
